Design of 1 bit comparator using VHDL

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity comparator is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         equal : out STD_LOGIC;
         lower : out STD_LOGIC;
         greater : out STD_LOGIC
         );
end comparator;

architecture comparator_arc of comparator is
begin

    equal <= a xnor b;
    lower <= (not a) and b;
    greater <= a and (not b);

end comparator_arc;

Full subtractor using VHDL programming language |

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity full_subtractor is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         c : in STD_LOGIC;
         difference : out STD_LOGIC;
         borrow : out STD_LOGIC
         );
end full_subtractor;

architecture full_subtractor_arc of full_subtractor is
begin

    difference <= a xor b xor c;
    borrow <= ((not a) and b) or
               (b and c) or
               (c and (not a));

end full_subtractor_arc;


Half Subtractor design using VHDL

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity half_subtractor is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         diff : out STD_LOGIC;
         borrow : out STD_LOGIC
         );
end half_subtractor;

architecture half_subtractor_arc of half_subtractor is
begin

    diff <= a xor b;
    borrow <= (not a) and b;

end half_subtractor_arc;

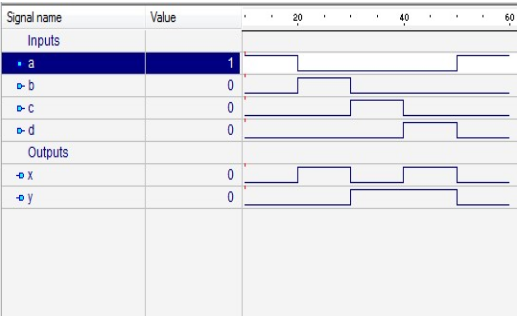

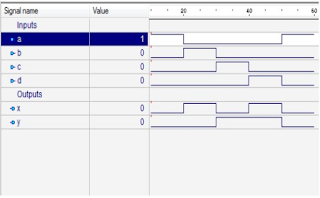

4 to 2 encoder using VHDL programming language |

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity encoder4_2 is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         c : in STD_LOGIC;
         d : in STD_LOGIC;
         x : out STD_LOGIC;
         y : out STD_LOGIC
         );
end encoder4_2;

architecture encoder4_2_arc of encoder4_2 is
begin

    x <= b or d;
    y <= c or d;

end encoder4_2_arc;

2 to 4 decoder using VHDL programming language |

PROGRAM :

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity decoder2_4 is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         w : out STD_LOGIC;
         x : out STD_LOGIC;
         y : out STD_LOGIC;
         z : out STD_LOGIC
         );
end decoder2_4;

architecture decoder2_4_arc of decoder2_4 is
begin

    w <= (not a) and (not b);
    x <= (not a) and b;
    y <= (a and (not b));
    z <= a and b;

end decoder2_4_arc;

Design 1 to 4 demultiplexer using vhdl programming |

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity multiplexer_4_1 is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         c : in STD_LOGIC;
         d : in STD_LOGIC;
         x : in STD_LOGIC;
         y : in STD_LOGIC;
         dout : out STD_LOGIC
         );
end multiplexer_4_1;

architecture multiplexer_4_1_arc of multiplexer_4_1 is
begin

    dout <= ((not x) and (not y) and a) or
            ((not x) and y and b) or
            (x and (not y) and c) or
            (x and y and d);

end multiplexer_4_1_arc;

Design 4 to 1 multiplexer using VHDL programming language |

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity multiplexer_4_1 is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         c : in STD_LOGIC;
         d : in STD_LOGIC;
         x : in STD_LOGIC;
         y : in STD_LOGIC;
         dout : out STD_LOGIC
         );
end multiplexer_4_1;

architecture multiplexer_4_1_arc of multiplexer_4_1 is
begin

    dout <= ((not x) and (not y) and a) or
            ((not x) and y and b) or
            (x and (not y) and c) or
            (x and y and d);

end multiplexer_4_1_arc;

Design full adder using VHDL programming |

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity Full_Adder_Design is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         c : in STD_LOGIC;
         sum : out STD_LOGIC;
         carry : out STD_LOGIC
         );
end Full_Adder_Design;

architecture Full_Adder_Design_arc of Full_Adder_Design is
begin

    sum <= a xor b xor c;
    carry <= (a and b) or
             (b and c) or
             (c and a);

end Full_Adder_Design_arc;

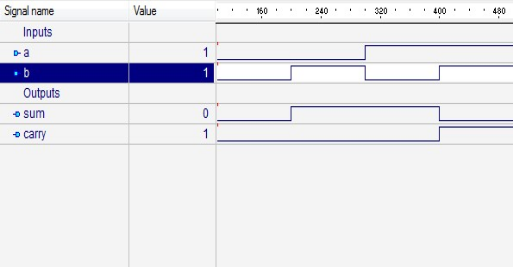

Half adder in VHDL using logical expressions |

PROGRAM:

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity Half_Adder is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         sum : out STD_LOGIC;
         carry : out STD_LOGIC
         );
end Half_Adder;

architecture Half_Adder_arc of Half_Adder is
begin

    sum <= a xor b;
    carry <= a and b;

end Half_Adder_arc;

AND gate design using VHDL programming language

Program -

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity and_gate is
     port(
         a : in STD_LOGIC;
         b : in STD_LOGIC;
         dout : out STD_LOGIC
         );
end and_gate;

architecture and_gate_arc of and_gate is
begin

    dout <= a and b;

end and_gate_arc;
